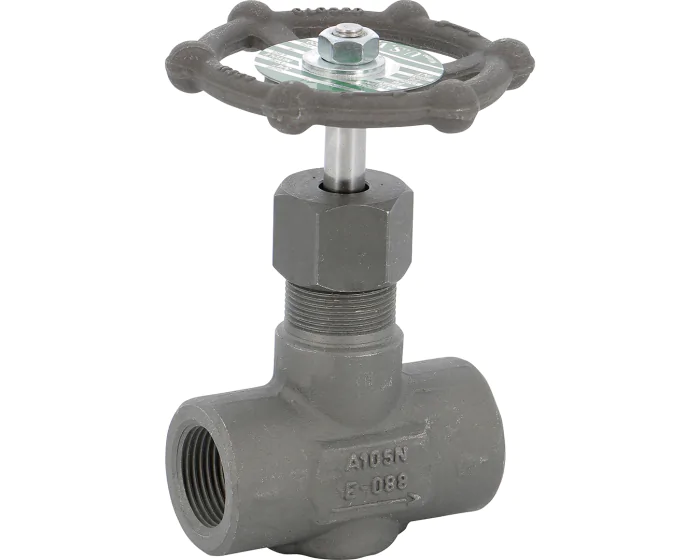

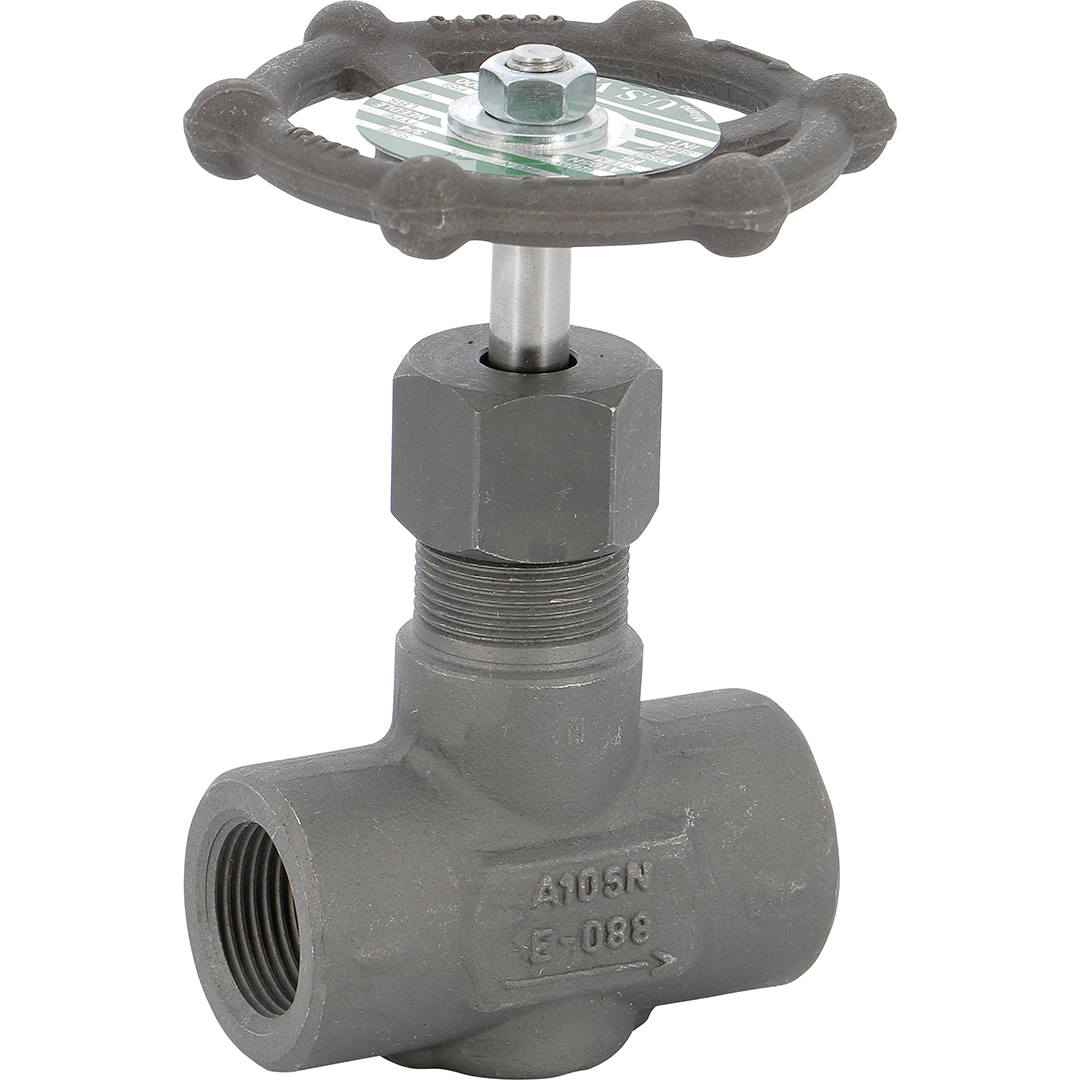

The 483 series needle valve is a forged valve range, made of A105N forged steel, F/F BSP, ATEX compatible, with graphite packing gland packing for the oil, steam and high pressure industries.
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| Option certificate 3.1 | Yes |
| Tightness test standard | API 598 |
| Steam | Yes |
| Opening device | Handwheel |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel AISI 410 |
| ATEX compatible | Yes |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 60.0 |
| Sealing | Metal / Metal |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 0.4 |
| Body material | Carbon steel ASTM A105 N |
| Bore | Standard |
| Packing gland | Yes |
| PS (bar) | 200 |
| Connections | BSP FF |
| TS max (°C) | 250 |
| TS min (°C) | -29 |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| Type of stem | Rising |
| Plug material | Stainless steel AISI 410 |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Carbon steel ASTM A105 N Standard 1/4'' | 483002 | S1007323 |
€60.49
(excl. btw)
|
add to cart |
| BSP FF Carbon steel ASTM A105 N Standard 3/8'' | 483003 | S1007324 |
€60.49
(excl. btw)
|
add to cart |
| BSP FF Carbon steel ASTM A105 N Standard 1/2'' | 483004 | S1007325 |
€66.69
(excl. btw)
|
add to cart |
| BSP FF Carbon steel ASTM A105 N Standard 3/4'' | 483005 | S1007326 |
€82.39
(excl. btw)
|
add to cart |
| BSP FF Carbon steel ASTM A105 N Standard 1'' | 483006 | S1007327 |
€116.69
(excl. btw)
|
add to cart |
